PVC CLING FILM EXTRUSION LINE
Detailed Information:

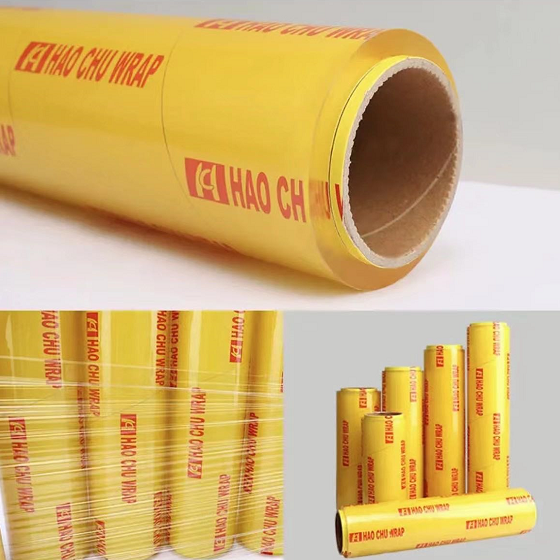

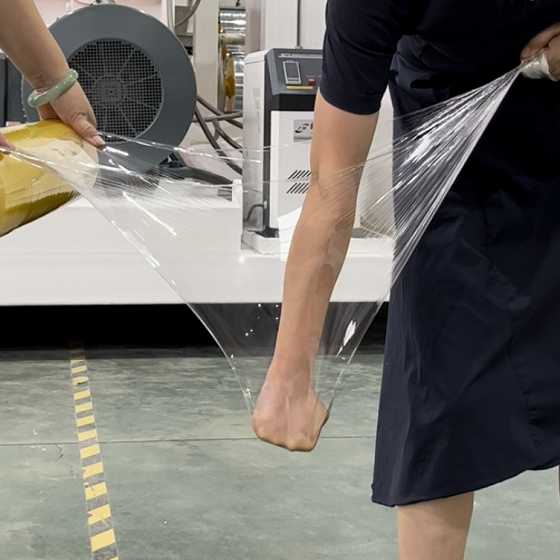

This unit uses PVC resin powder as the main raw material, mixes various grades of auxiliary agents, and then heats, melts, plasticizes and extrudes through the extruder to produce ductile and self-adhesive PVC cling film. Widely used in packaging field. The unit includes: weighing and mixing system, extruder system, trimming system, using specially designed professional molds and extrusion molding process, which is stable in high-speed production. Rewinding adopts four-axis automatic roll change and paper tube change function. The whole machine is controlled by PLC, which is easy to operate.
Technical Parameter:
|
型号Model |
FLY-1600 |
FLY-1800 |
|
螺杆直径Screw Dia |
Φ115mm |
Φ115mm |
|
螺杆长径比Screw L:D |
30:1 |
30:1 |
|
模头宽度Die Width |
2100MM |
2350MM |
|
产品宽度Products Width |
1600(400x4)/(320x5)mm |
1800(450x4)/(600x3)/(300x6)mm |
|
产品厚度Production Thickness |
0.010-0.018mm |
0.010-0.018mm |
|
生产能力Output |
≤200kg/h |
≤250kg/h |
|
设计线速度Designed line speed |
250m/min |
250m/min |
|
总功率Total power |
350KW |
355KW |
|
机器重量Weight |
20000KG |
22000KG |
|
安装尺寸Dimension |
16×9×5m |
16×9.5×5m |
