OPP/PP Non-woven Fabrics Lamination Machine
5.0
Model:
1300mm,1850mm,2350mm
Feature:
The human-computer interface operation and extrusion thickness are automatically and accurately calculated by the computer, and the whole machine is under linkage control.
APPlication:
It can produce various non-woven fabric insulation bags, food packaging bags, PP woven bags, waterproof cloth and other composite materials
Port:
Shenzhen, China
Terms of Payment:
T/T
Warranty:
1 Year
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
Screw Diameter:LD-90mm / LD-115mm
Extrusion volume：Max.250kg/h or 400kg/h
Rewinding and unwinding diameter: maximum φ1200mm
Base material: paper (35~350g/m2) 、PP Non-woven Fabrics、Aluminium Foil、Kraft Paper
Resin used: LDPE/LLDPE/PP/EVA etc.
Coating grade resin Extrusion coating thickness: 8~60μm
Control method:The human-computer interface operation and extrusion thickness are automatically and accurately calculated by the computer, and the whole machine is under linkage control. It can produce various non-woven fabric insulation bags, food packaging bags, PP woven bags, waterproof cloth and other composite materials

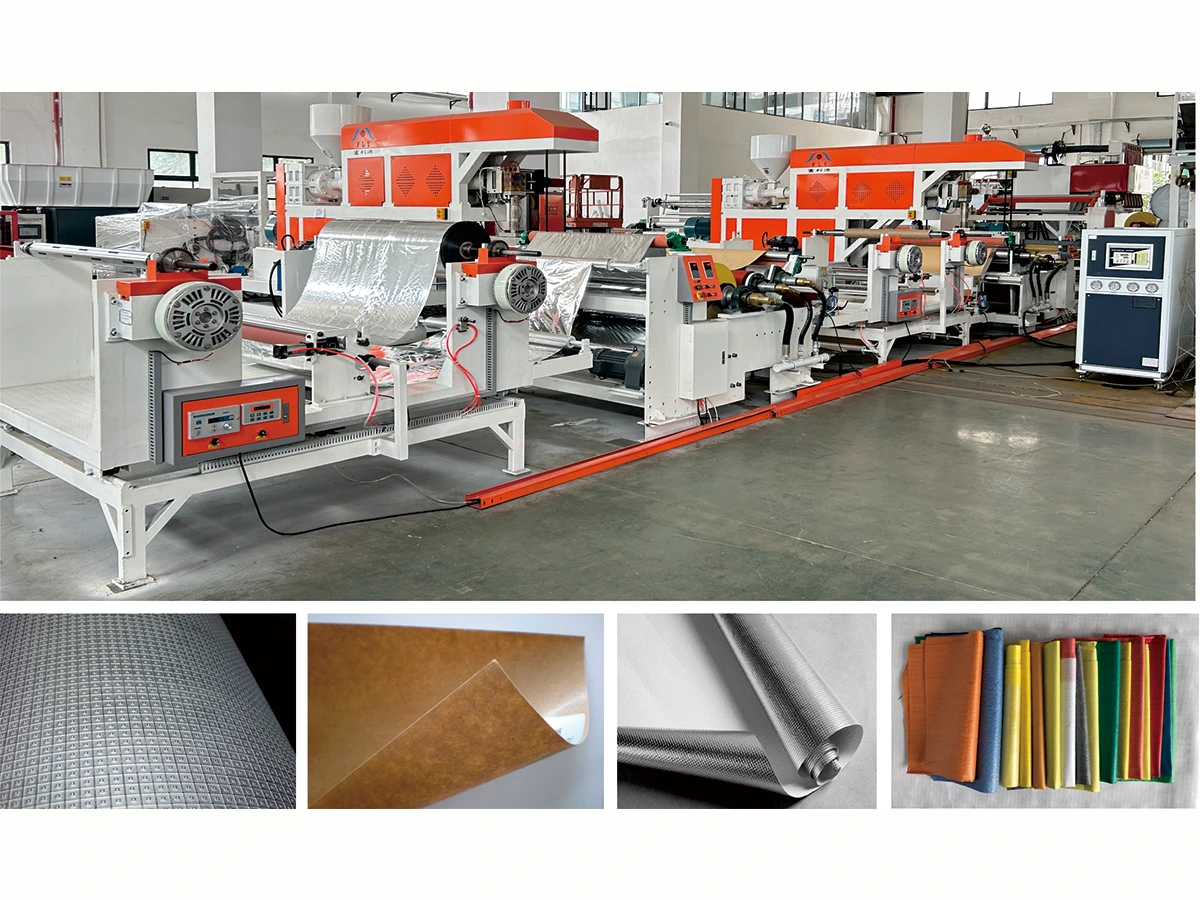

Finished product picture
opp1
opp2
opp3
opp4
Product Specifications
|
Model |
Effective width |
Production speed |
Coating thickness |
Dimensions |
Extrusion volume |
|
1300mm |
1000mm |
50-200m/min |
8~60μm |
13.45×（9.5~12）×3.8m |
250KG or 450KG |
|
1850mm |
1600mm |
50-200m/min |
8~60μm |
13.45×（9.5~12）×3.8m |
250KG or 450KG |
|
2350mm |
2200mm |
50-200m/min |
8~60μm |
13.45×（9.5~12）×3.8m |
250KG or 450KG |
