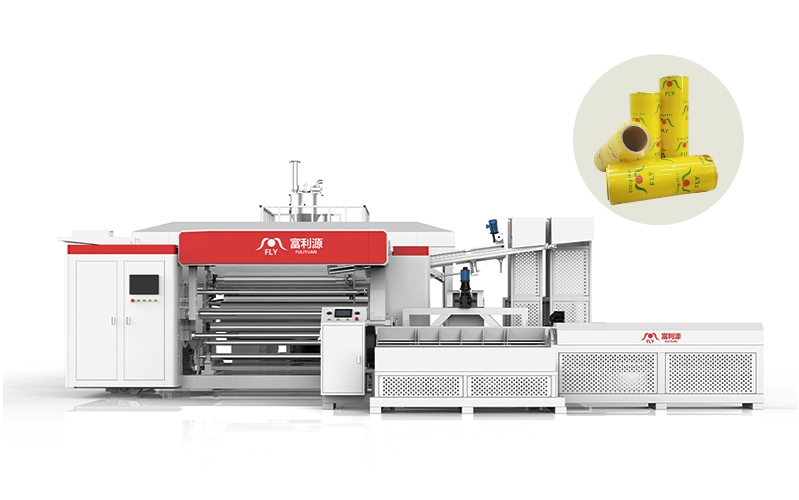

PVC Cling Film Machine High Production Efficiency FLY Industrial
5.0
Model:
FLY-1200mm,FLY-1600mm,FLY-1800mm
Feature:
Automatic paper tube feeding, automatic unloading, automatic roll changing, less labor, high automation and high production efficiency.
APPlication:
Packaging and preservation of vegetables, fresh fruits, flowers, oil-free raw food, daily necessities and industrial packaging.
Port:
Shenzhen, China
Terms of Payment:
T/T
Warranty:
1 Year
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
PVC cling film is a kind of plastic packaging product, usually made of PVC powder by polymerization reaction with several other ingredients. Mainly used for packaging and preservation of vegetables, fresh fruits, flowers, oil-free raw food, daily necessities and industrial packaging.
It is widely used in the packaging fields of family life, supermarket stores, and industrial production. PVC plastic wrap has the advantages of good transparency, high tensile strength, strong self-adhesion, and lower cost of use.
Finished product picture
7
8
9
Product Specifications
|
Model |
FLY-1200mm |
FLY-1600mm |
FLY-1800mm |
|
Screw diameter |
¢90 |
¢115 |
¢115 |
|
Screw L:D |
32:1 |
32:1 |
32:1 |
|
Die width |
1700mm |
2150mm |
2350mm |
|
Thickness |
0.009-0.05mm |
0.009-0.05mm |
0.009-0.05mm |
|
Structure of film layers |
One layer |
One layer |
One layer |
|
Pull speed |
250m/min |
250m/min |
250m/min |
|
Output |
130-260Kg/h |
200-300Kg/h |
250-350Kg/h |
|
Total power |
250KW |
280KW |
300KW |
|
Weight |
23T |
28T |
33T |
|
Dimension |
13000x8000x4800mm |
15000×10000×4800mm |
15000x10000x4800mm |
Production Line Features
design
Specially designed PVC special mold and screw technology design to achieve stability during high-speed production, and the product is a PVC film with good plasticization, high transparency and high tensile strength.
size
According to the different widths and lengths of the products, the products can be cut and coiled, and the produced products can be made into large rolls for secondary rewinding, and can also be made into small rolls.
1 (2)
Siemens PLC intelligent electrical control, fixed-length cutting and rewinding device and rewinding device make the film surface more flat and the end face neat.
function
Fully automatic Siemens PLC four-axis winding system, automatic paper tube feeding, automatic unloading, automatic roll changing, less labor, high automation and high production efficiency. The roll change adopts four- axis winding, and the whole process is fast and time-consuming. That is, it can produce 150-200 m/roll of millet- number plastic wrap, and can also make a large roll diameter of 8000m/roll.
